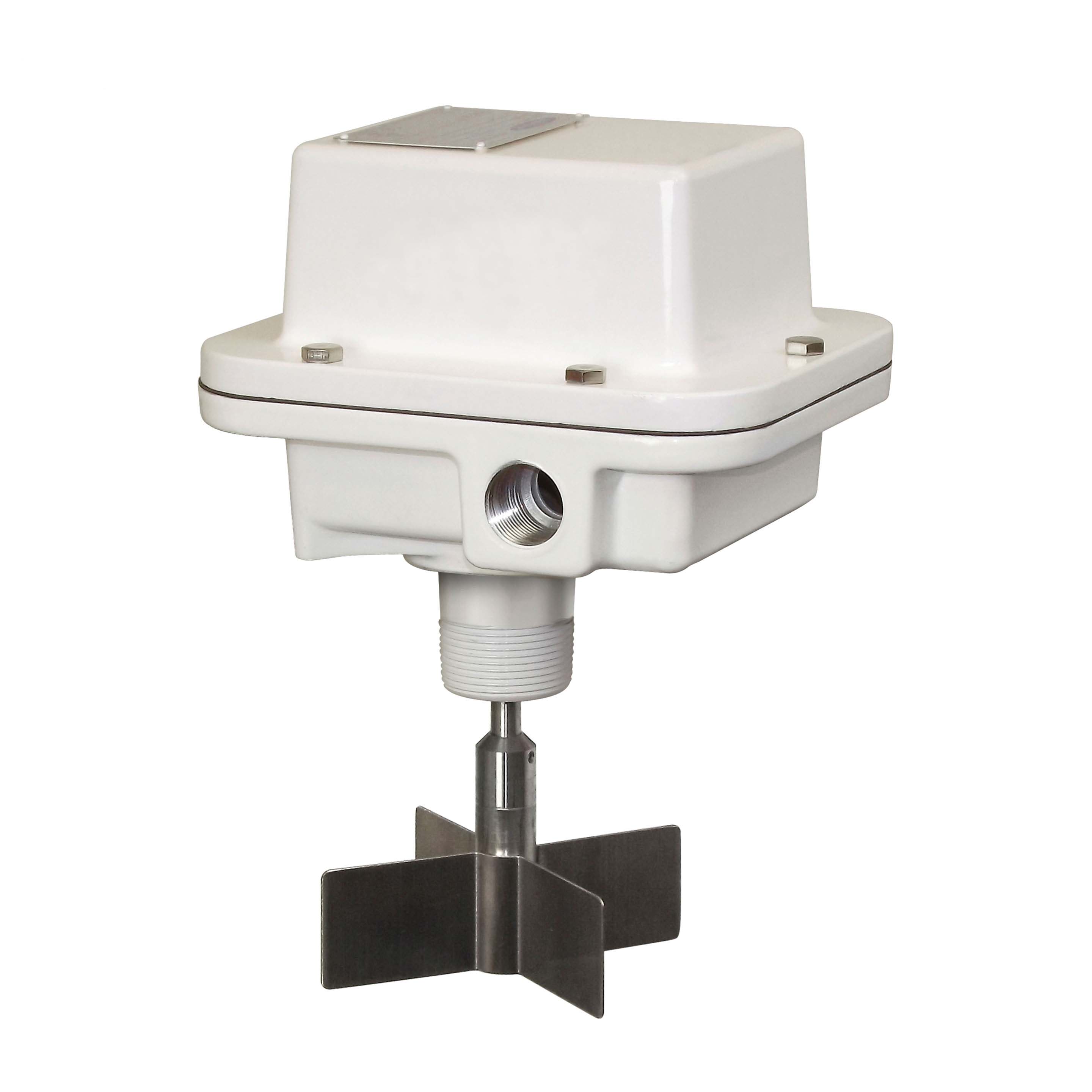

The ROHEVEL-RTS5205 is a is the most universal of all level sensing technologies and is the most popular level switch used in dry bulk materials. The ROHEVEL-RTS5205 is a rotating paddle type, bulk material level sensor offered with a wide variety of paddle options for unequaled application versatility. It is easy to install and requires no special tools or calibrations.
  • Adaptable to a variety of applications and materials
  • Cement, grain, stone crushers, power, wood chips, pellets, sand, aggregates, or plastics.
  • Very tall, narrow silos for single point level detection
  • Vessels with excessive noise, dust, or high temperatures
  • Can be placed as a high, intermediate or low level indicator.
  • A simple, mechanical mechanism means no calibration is required for quick installation
  • Long-lasting, sealed motor keeps maintenance and replacement costs low
  • Extensive Paddle Options to adapt to a variety of applications
  • Frame designed to enable connection flexibility Imperial or Metric conduit entry options Process Fitting can be made to fit any connection
  • Operating Power: 120/240 VAC, 24 VDC or 24 VAC
  • Motor Rating: Permanent-magnet synchronous, 2 watts
  • Switch Rating: SPDT 10A 125 VAC, 10A 250 VAC, 1/2 A 125 VDC, 1/4 A 250 VDC
  • Operating Temperature: -40° F (-40° C) to 200° F (93° C)
  • Housing and Cover: Injection Molded Minlon®, corrosion resistant weatherproof (NEMA 4, 4X, 5)
  • Process Fitting: 3/4 ” NPT Conduit Entry 1/2” NPT
Name Document No.
Product Specification ROCKHILL-EN-04520501
Catalog ROCKHILL-EN-04520502
Advertisement ROCKHILL-EN-04520503
Software specification ROCKHILL-EN-04520504
Brief manual ROCKHILL-EN-04520505
worksheet ROCKHILL-EN-04520506
Flange drawing ROCKHILL-EN-04520507
Connector drawing ROCKHILL-EN-04520508
Adaptor drawing ROCKHILL-EN-04520509
Manual ROCKHILL-EN-04520510
